Author Topic: Modified Kato Truss Bridge  (Read 3139 times)

0 Members and 1 Guest are viewing this topic.

sd80mac

  • Crew
  • *
  • Posts: 104
  • Respect: +70
Modified Kato Truss Bridge
« on: January 10, 2007, 03:32:10 PM »
0
Following Ed Nadolski's example, I use Andy Reichert's Proto87 exact-scale spikes (.010" diameter shank) to secure ME code 40 guardrails to the deck of a Kato through truss bridge.

All spike holes were pre-drilled with a #85(.011") drill bit and spikes carfully inserted. Rail was then slid into place, and spikes pusheddown into final holding position.

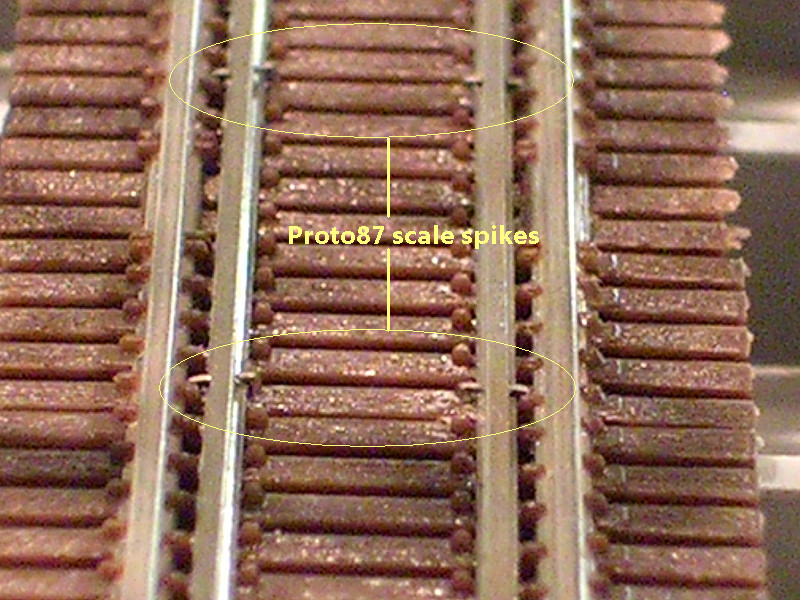

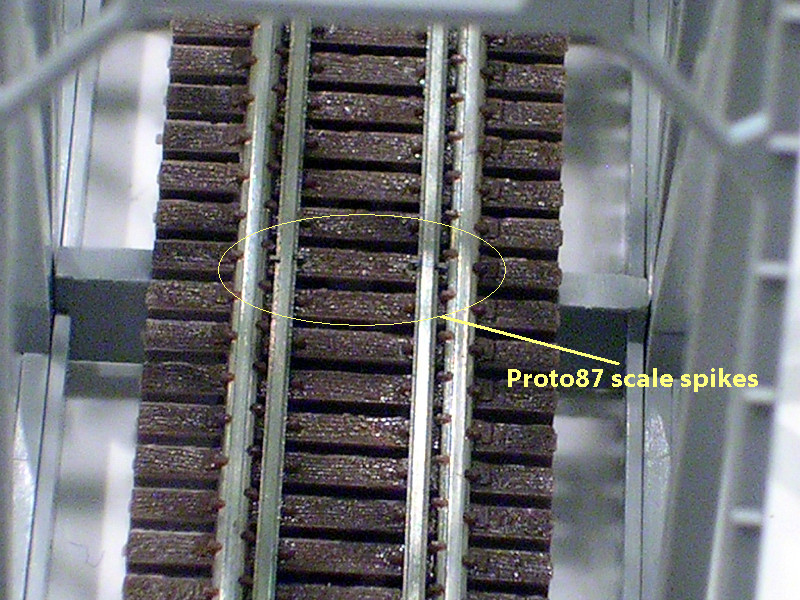

Photos of the finished installation below. Look very closely and see if you can find the spikes!












--
Donnell M. Wells
Logged

sd80mac

  • Crew
  • *
  • Posts: 104
  • Respect: +70
Re: Modified Kato Truss Bridge
« Reply #1 on: January 10, 2007, 03:32:33 PM »
0


Logged

Ed Kapuscinski

  • Global Moderator
  • Crew
  • *
  • Posts: 24733
  • Head Kino
  • Respect: +9245
    • Conrail 1285
Re: Modified Kato Truss Bridge
« Reply #2 on: January 10, 2007, 03:50:17 PM »
0
Well, I'm impressed.
Logged

sd80mac

  • Crew
  • *
  • Posts: 104
  • Respect: +70
Re: Modified Kato Truss Bridge
« Reply #3 on: January 10, 2007, 03:58:03 PM »
0
The spikes hold very snugly without the aid of glue. Also, thereis no problem with wheels of any type hitting spike heads.

Donnell

Quote from: Ed Kapuscinski on January 10, 2007, 03:50:17 PM
Well, I'm impressed.
Logged

John

  • Administrator
  • Crew
  • *****
  • Posts: 13386
  • Respect: +3245
Re: Modified Kato Truss Bridge
« Reply #4 on: January 10, 2007, 04:43:15 PM »
0
nice .. it gets rid of that UNITRAK look quite nicely ..
Logged

tom mann

  • Administrator
  • Crew
  • *****
  • Posts: 10917
  • Representing The Railwire on The Railwire
  • Respect: +1014
    • http://www.chicagoswitching.com
Re: Modified Kato Truss Bridge
« Reply #5 on: January 10, 2007, 05:02:05 PM »
0
Nice job.
Logged

amato1969

  • Crew
  • *
  • Posts: 1363
  • Gender: Male
  • Respect: +892
Re: Modified Kato Truss Bridge
« Reply #6 on: January 11, 2007, 09:05:37 AM »
0
VERY nice work.  The improvement over the tinplate track is amazing!
Logged

wm3798

  • Crew
  • *
  • Posts: 16124
  • Gender: Male
  • I like models. She likes antiques. Perfect!
  • Respect: +6467
    • Western Maryland Railway Western Lines
Re: Modified Kato Truss Bridge
« Reply #7 on: January 11, 2007, 11:32:24 AM »
0
I installed my bridge track and guardrail with Krazy glue... looks and works fine!  Leave it to Ed to over-engineer a project! ;D

Lee
Logged
Rockin' It Old School

Lee Weldon www.wmrywesternlines.net
